Parts

1327-14 , 1368-16, 1337-18

1332-20, 1373-23, 1361-25
1389-28, 1425-32

Pressure section 14-32mm -12 in -10 out.

1465-14, 1348-18, 1306-25

1312-30, 1370-32, 1390-35


Pressure section 14-35mm -12 in -12 out.

1356-23, 1352-28, 1377-32

1379-35


Pressure section 23-35mm -16 in -12 out.

1403-30

Sprint car
Pressure section 30mm -12 in -12 out.

1420-25


Pressure section 25mm -12 in -12 out.

1334-25, 1533-28, 1392-35


Pressure section 25-35mm -12 in -12 out.

2501-30


Scavenge section 30mm -12 in
w. left Chevy small block mount.

2506-30


Scavenge section 30mm -12 in
w. left Chevy small block mount.

2508-30


Scavenge section 30mm -12 in
w. oil air separator mount.

2516-30


Scavenge section 30mm -12 in.

2528-30


Scavenge section 30mm -12 in
w. universal left mount.

2529-30


Scavenge section 30mm -12 in
w. universal right mount.

2533-30


Scavenge section 30mm -12 in
end section.

2547-30


Scavenge section 30mm -12 in
w. bearings.

2550-30


Scavenge section 30mm -12 in 16 out.

2555-30


Scavenge section 30mm -12 in -16 out
end section.

2562-30


Scavenge section 30mm -12 in
w. longer -12 fitting.

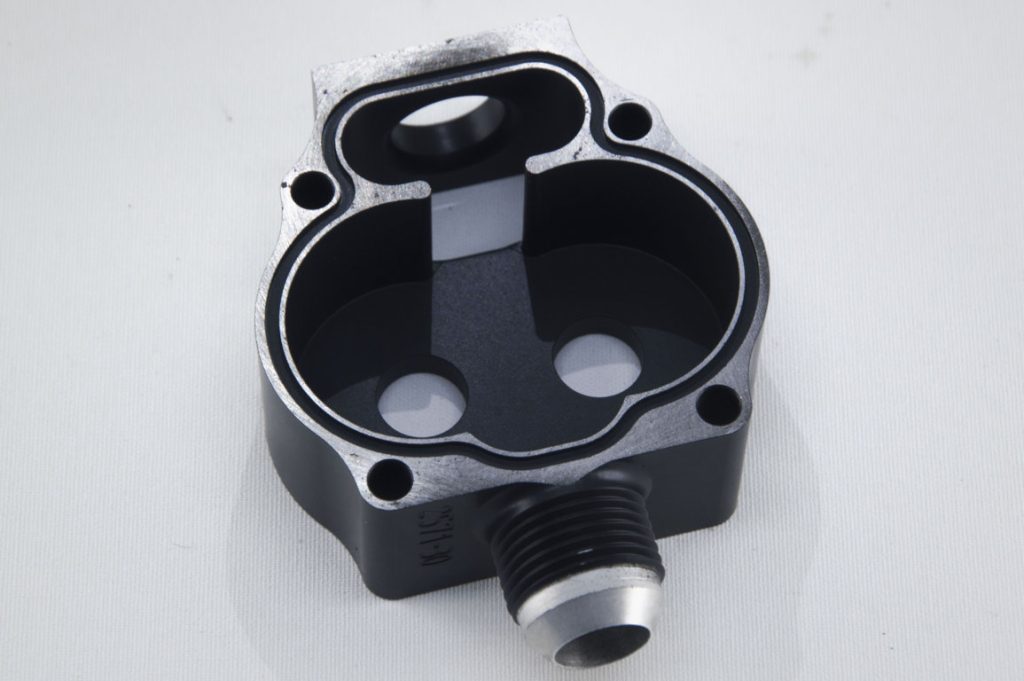

2571-30


Scavenge section 30mm -12 in
bolt pattern out fitting.

2628-30


Scavenge section 30mm -12 in
w. short Chevy big block bracket.

2644-30


Scavenge section 30mm -12 in
w. right Chevy small block mount.

Part 2


Under construction.

2670-30


Scavenge section 30mm -12 in
w. left Chevy bigblock mount DRC3.

2672-30


Scavenge section 30mm long -12 in
w. left Chevy big block mount DRC3.

Part 2


Under construction.

2692-30


Scavenge section 30mm -12 in -12 out.
w. bearings

2718-30


Scavenge section 30mm -12 in
female -16 out straight back.

2720-30


Scavenge section 30mm -12 in
w. left Ford big block mount.

2722-30


Scavenge section 30mm -10 in female
end section.

2723-30


Scavenge section 30mm short -12 in


2725-30


Scavenge section 30mm long -12 in
-16 out.

2736-30


Scavenge section 30mm -12 in
w. left Ford mount. 2" between bolts.

2738-30


Scavenge section 30mm -12 in
w. right Ford mount.

2748-30


Scavenge section 30mm -12 in -16 out.

2752-30


Scavenge section 30mm -16 in
for O-ring fittings.

2754-30


Scavenge section 30mm -16 in
for O-ring fittings. -16 out.

2756-30


​​​​​​​Scavenge section 30mm -16 in
for O-ring fittings. Bearings.

2758-30


Scavenge section 30mm -16 in
for O-ring fittings. Left Chevy big block bracket DRC3.

2763-30


Scavenge section 30mm -12 in -12 out
end section.

2768-30


Scavenge section 30mm -16 in
for O-ring fittings. -16 out
​​​​​​​end section.

2770-30


Scavenge section 30mm -16 in
for O-ring fittings. Left Chevy small block bracket.

2780-30


Scavenge section 30mm -16 in
for O-ring fittings. Sealed return channel

2794-30


Scavenge section 30mm -16 in
for O-ring fittings. Left Chevy big block bracket DRC3. 19mm blade.

2822-30


Scavenge section 30mm -12 in
w. fuel pump mount.

2836-30


Scavenge section 30mm -12 in
for O-ring fittings. W. oil air separator mount.

2838-30


Scavenge section 30mm -1 in
for O-ring fittings. Bearings.

2844-30


Scavenge section 30mm -12 in
for O-ring fittings. Left universal bracket.

2846-30


Scavenge section 30mm -12 in
for O-ring fittings.

2852-30


Scavenge section 30mm -12 in
for O-ring fittings. Female -16 return.

2856-30


Scavenge section 30mm -10 in
for revers drive.

2860-30


Scavenge section 30mm -12 in
for O-ring fittings. Universal right bracket.

2898-30


Scavenge section 30mm -16 in
for O-ring fittings. Left Chevy small block bracket short.

2906-30


Under construction.

3502-35


Scavenge section 35mm -12 in.
Left Chevy big block bracket.

3504-35


Scavenge section 35mm -12 in -16 out.

3506-35


Scavenge section 35mm -12 in.

3508-35


Scavenge section 35mm -12 in -16 out.
​​​​​​​End section.

3514-35


Scavenge section 35mm -12 in.
​​​​​​​End section.

3559-35


Scavenge section 35mm -10 in.
​​​​​​​End section.

220


Front cover with pressure relief valve.
For standard pressure section.

222


Front cover with pressure relief valve.
For light pressure section.

226


Front cover with pressure relief valve.
For standard pressure section.
Angel.

232


Front cover with pressure relief valve.
For light pressure section.
Reverse rotation.

240


Front cover with pressure relief valve.
For light pressure section.
​​​​​​​Adjuster pointing up.

242


Front cover with pressure relief valve.
For standard pressure section.
​​​​​​​Adjuster pointing up.

252


Front cover with pressure relief valve.
For light pressure section.
​​​​​​​Sprint car mount.

326


Front cover with pressure relief valve.
For standard pressure section.
​​​​​​​Sprint car mount.

114


Separator housing - 90º

120


Separator housing - Straight

XXX


Separator impeller

501-43


Scavenge section 43mm -12 in.

502-43


Scavenge section 43mm -12 in -16 out.

503-43


Scavenge section 43mm -12 in.
​​​​​​​End section.

505-43


Scavenge section 43mm -12 in.
​​​​​​​With oil air separator mount.

508-43


Scavenge section 43mm -12 in.
Female -16 out straight back

510-20


Pressure section 20mm -12in -10 out
Chevy big block left bracket.

511-35


Pressure section 35mm -12in -12 out
Chevy big block left bracket.

512-25


Pressure section 25mm -12in -10 out
Dodge left bracket.

513-25


Pressure section 25mm -12in -12 out
Chevy small block left bracket.

514-25


Pressure section 25mm -12in -10 out

514-38


Pressure section 38mm -16in -12out

515-43


Scavenge section 43mm -12in.
Universal left bracket.

516-38


Pressure section 38mm -12in -12 out
Chevy big block left bracket short.

517-43


Scavenge section 43mm -12in -16 out.
Universal left bracket.

520-38


Pressure section 38mm -16in -12 out.
Special bracket.

523-32HV


Pressure section 32mm High volume
-12in -12 out
Chevy big block left bracket.

524-43


Scavenge section 43mm -12in.
Universal right bracket.

527-38


Pressure section 38mm -16in  female angel -12 out. Chevy big block left bracket.

5294-43


Scavenge section 43mm -12in.
Chevy big block right bracket.

532-34HV


Pressure section 34mm High volume
-16in -12 out
Chevy big block left bracket.

535-35


Pressure section 35mm -12in -10 out.
Dragster bracket.

541-34


Scavenge section 43mm -12in -16out.
Short Chevy small block left bracket.

542-34HV


Pressure section 34mm high volume.
​​​​​​​-16in -12out

543-34HV


Pressure section 34mm high volume.
​​​​​​​-16in -12out

553-32


Pressure section 32mm ​​​​​​​-12in -10out.
Chevy small block left bracket.

224


Front cover with pressure relief valve.
For 500 series pressure section.



Under construction.

6002-30


Scavenge section 30mm Sportsman series -12in -12out

6004-30


Scavenge section 30mm Sportsman series -12in -12out end section.

6010-30


Scavenge section 30mm Sportsman series -12in -12out
Chevy small block left bracket.

6012-30


Scavenge section 30mm Sportsman series -12in -12out
Chevy big block left bracket.

6014-30


Scavenge section 30mm Sportsman series -12in -12out
Universal left bracket.

6016-30


Scavenge section 30mm Sportsman series -12in -12out
Universal right bracket.

6018-30


Scavenge section 30mm Sportsman series -12in -12out with bearings.

6020-30


Scavenge section 30mm Sportsman series -12in

6022-30


Scavenge section 30mm Sportsman series -12 special right bracket.

6024-30


Scavenge section 30mm Sportsman series -12in bolt pattern out.

6026-30


Scavenge section 30mm Sportsman series -12in end section w. fuel wire drive.

6028-30


Scavenge section 30mm Sportsman series -12in -12out
Late model bracket.

6030-30


Scavenge section 30mm Sportsman series -12in end section w. Sweet powerstering mount.

6052-25


Pressure section 25mm Sportsman series -12in -12out.

6054-30


Pressure section 30mm Sportsman series -12in -12out.

6056-30


Pressure section 30mm Sportsman series -12in -12out.

6058-35


Pressure section 35mm Sportsman series -12in -12out.

6060-35


Pressure section 35mm Sportsman series -12in -12out
Late model bracket.

6062-38


Pressure section 38mm Sportsman series -12in -12out
Late model bracket.

6064-38


Pressure section 38mm Sportsman series -12in -12out.

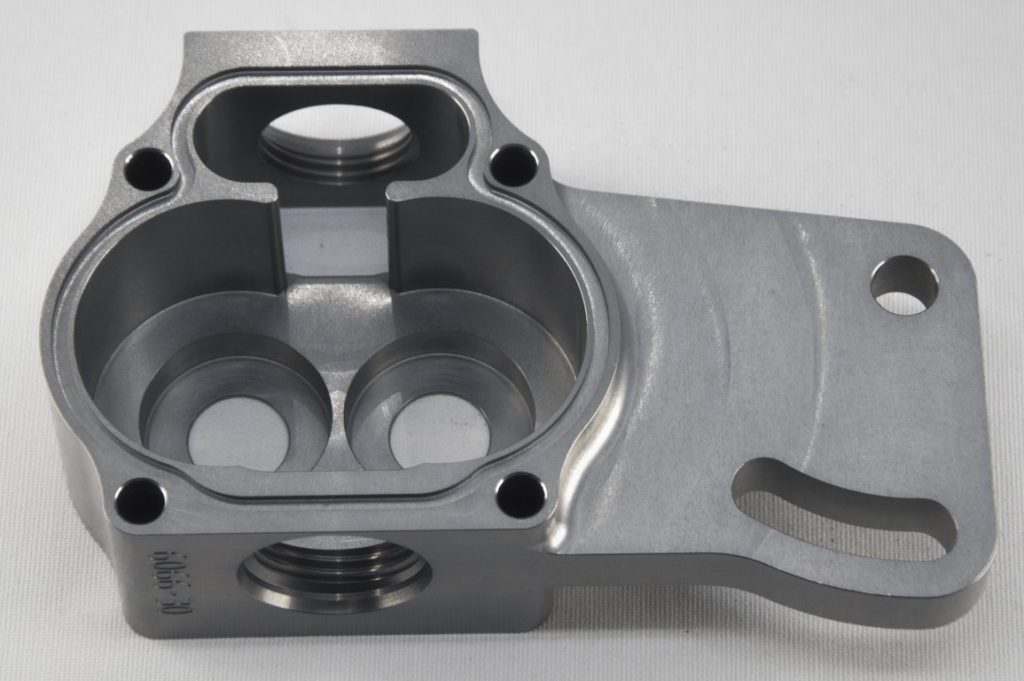

6066-30


Scavenge section 30mm Sportsman series -12in -12out
Special bracket.

6068-30


Scavenge section 30mm Sportsman series -12in -12out
End drive.

6070-35


Pressure section 35mm Sportsman series -12in -10out
Sprintcar w. filter adapter.

270


Front cover with pressure relief valve.
For Sportsman series pressure section.

294


Front cover with pressure relief valve.
For Sportsman series pressure section.
Adjuster pointing up.

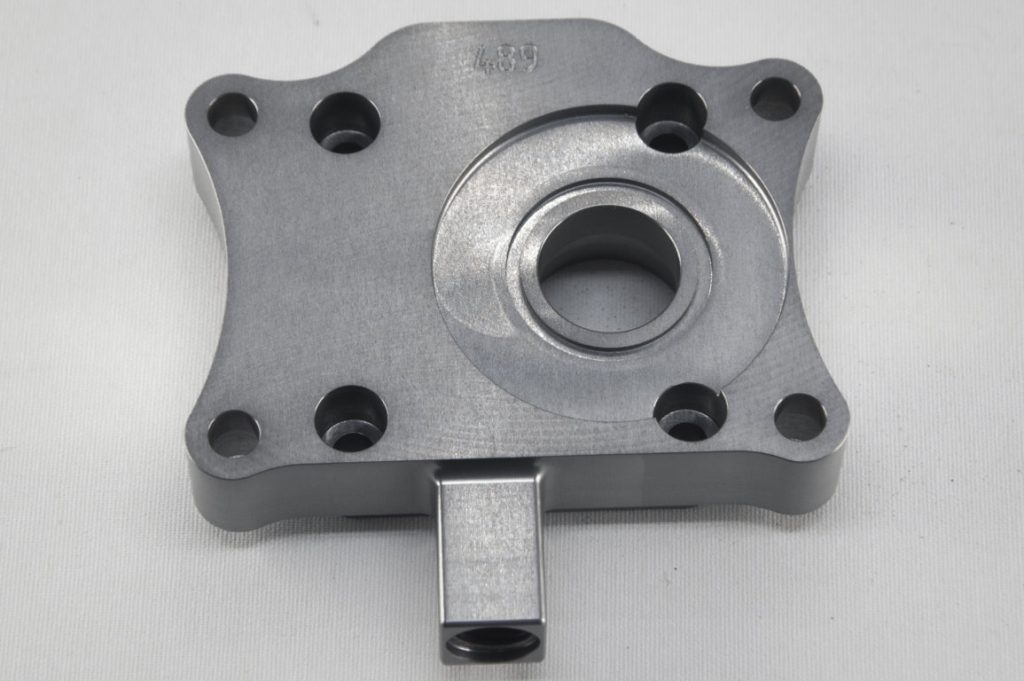

489


Front cover with pressure relief valve.
For Sportsman series pressure section.
With Sprintcar mount.



Under construction.

429


Manifold for 4stage pump for Porsche.

1909-35


Scavenge section 2 on pump for Porsche.

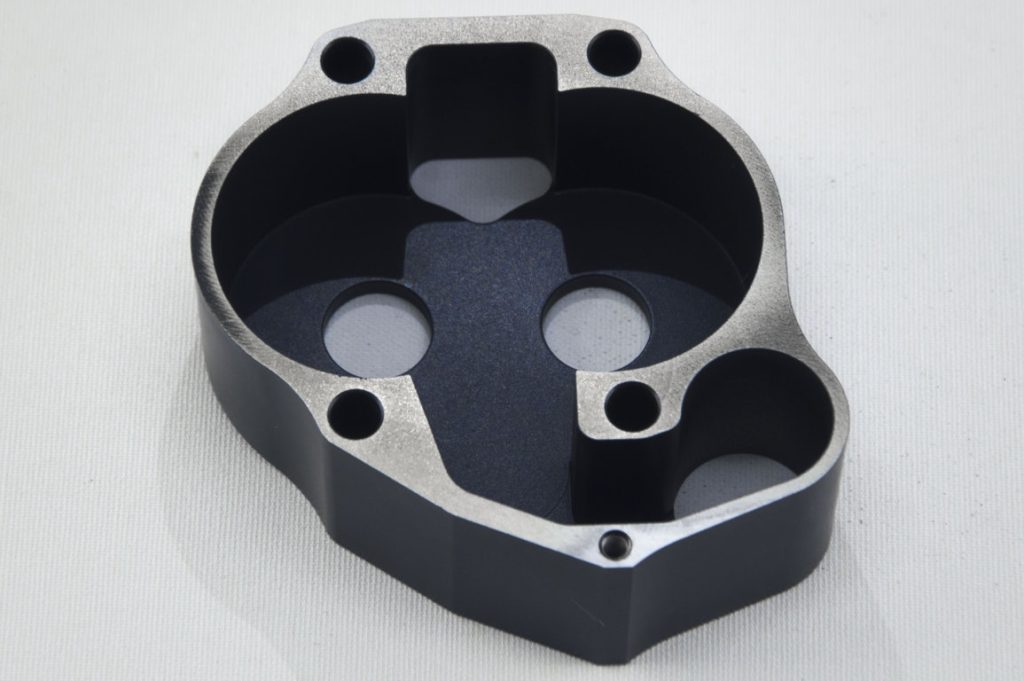

1942-30


Scavenge section 2 on 4stage pump for Porsche.

1946-30


Scavenge section 3 on 4stage pump for Porsche.

1948


Scavenge line cover for 1946-30

1956-30


Scavenge section 1 on 3 and 4stage pumps for Porsche.

1958


Bracket for 3stage pump for Porsche.

1960


Bracket for 4stage pump for Porsche.

1962


Pressure plate 3 and 4stage pump for Porsche.

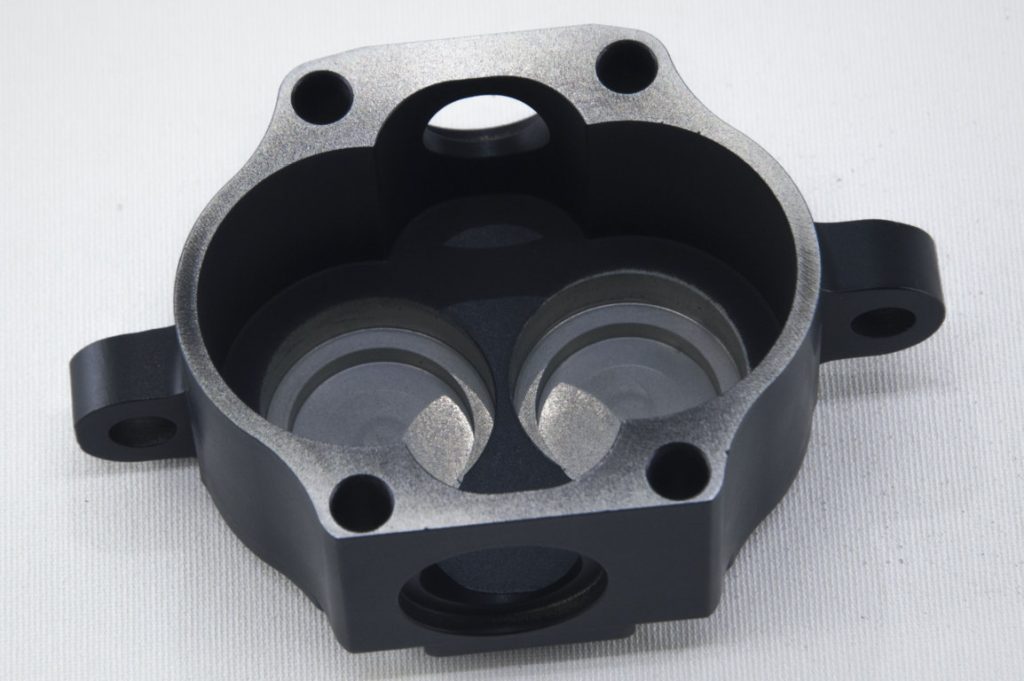

1966-30HV


Pressure section 30HV for 3 and 4stage
​​​​​​​pump for Porsche.

1968-32HV


Pressure section 32HV for 3 and 4stage
​​​​​​​pump for Porsche.

1976-34HV


Pressure section 34HV for 3 and 4stage
​​​​​​​pump for Porsche.

7006-35


Scavenge section 35mm Small series
-12 in. End section.

7016-35


Scavenge section 35mm Small series
-12 in -12 or -16 out.

7060-35


Scavenge section 35mm Small series
-12 in. Universal mount.

7062-35


Under construction.

7064-35


Under construction.

7074-35


Under construction.

7076-35


Under construction.

7078-35


Under construction.

7080-35


Scavenge section 35mm Small series
-12 in -16out. Universal mount.

7082-35


Scavenge section 35mm Small series
-12 in. End section w. power steering mount.

7108-35


Pressure section 35mm Small series
-12 in -12out.

7135-25


Pressure section 25mm Small series
-12 in -12out.

7146-22


Pressure section 22mm Small series
-12 in -12out. Universal mount.

7148-22


Pressure section 22mm Small series
-12 in -12out.

7152-25


Pressure section 25mm Small series
-12 in -12out. Universal mount.

7154-30


Pressure section 30mm Small series
-12 in -12out. Universal mount.

7164-35


Pressure section 35mm Small series
-12 in -12out. Universal mount.

7214-43


Scavenge section 43mm Small series
-12 in. Big block bracket.

7216-43


Scavenge section 43mm Small series
-12 in -16 out forward.

7218-43


Scavenge section 43mm Small series
-12 in.

7220-43


Scavenge section 43mm Small series
-12 in. End section.

7376-35


Scavenge section 35mm Small series
For direct pan mount.

7378-35


Scavenge section 35mm Small series
For direct pan mount. -16 out.

7380-35


Scavenge section 35mm Small series
For direct pan mount.

7382-35


Scavenge section 35mm Small series
For direct pan mount. End section.

7390-35


Scavenge section 35mm Small series
For direct pan mount. End section.

7624-35


Pressure section 35mm Small series
For direct pan mount. -16 in -12out.

7900-35


Scavenge section 35mm Small series
-12in.

7902-35


Scavenge section 35mm Small series
-12in

7904-35


Scavenge section 35mm Small series
-12in -16out.

272


Front cover with pressure relief valve.
For small series pressure section.

371


Front cover with pressure relief valve.
For small series pressure section.

483


Front cover with pressure relief valve.
For small series pressure section.
​​​​​​​Adjuster pointing up.

485


Front cover with pressure relief valve.
For small series pressure section.

494


Front cover with pressure relief valve.
For small series pressure section.
​​​​​​​Adjuster pointing up.



Under construction.

100-8-Z17-18-19


Side washer for crank pulley 17-18-19.

100-8-Z20-21


Side washer for crank pulley 20-21.

100-8-Z22-23


Side washer for crank pulley 22-23.

100-5-Z44


Pulley Z44 HTD5

100-5-Z50


Pulley Z50 HTD5

100-5-Z53


Pulley Z53 HTD5

100-5-Z54


Pulley Z54 HTD5

100-5-Z58


Pulley Z58 HTD5

100-8-Z39-35


Pulley HTD8 Z39 for Late model pumps

100-8-Z17-Z23


Crank pulley Z17-23

100-8-Z28-Z32


Pulley HTD8 Z28, Z30 and Z32

100-L-Z32


Pulley Z32 "L profile"

100-8-Z33-Z38


Pulley HTD8 Z33, Z34, Z36 and Z38

100-8-Z39-35


Pulley HTD8 Z39 for Late model pumps

100-8-Z39-Z49


Pulley HTD8 Z39, Z40, Z42, Z44, Z45, Z46, Z48 and Z49

100-2L-22


2 loob rotor - 22 mm

100-2L-25


2 loob rotor - 25 mm

100-2L-30


2 loob rotor - 30 mm

100-2L-35


2 loob rotor - 35 mm

100-2L-25B


2 loob rotor Big B - 25 mm

100-2L-43B


2 loob rotor Big B - 43 mm

100-2LS-35


2 loob rotor Small - 35 mm

100-2LS-43


2 loob rotor Small - 43 mm

Part 2


Under construction.

100-15


Drive hub - 15,4 (1")

100-16


Drive hub inner - 15 mm for pulleys.

100-17


Drive hub inner - 12,7 mm for pulleys.

100-19


Drive hub set - 15/25,4 mm

Part 2


Under construction.

Part 2


Under construction.

100-18


Woodruff key - 5 mm

100-68


Woodruff key - 4 mm

100-65


Key PTFE strip

100-21


Seal Viton
​​​​​​​
15 x 24 x 6 mm

100-22


Seal Viton

12,7 x 22,22 x 6 mm

100-91


Seal Viton

12,7 x 28,575 x 6,35 mm

100-25


78 x 2 mm

100-26


72 x 2 mm

100-64


63 x 2 mm

100-29


Drivebolt - small

100-31


Drivebolt - STD

100-40


Drivebolt - 3/8" UNF

100-30


Jet nut - 1/4" - 28

ALN12-1


Nut 12 point ARP - 1/4" - 28

100-51


AN12 - 1"1/8 - 20 UNF

100-53


AN10 - AN12 BOSS

100-54


AN12 - AN12 BOSS

100-55


AN16 - AN12 BOSS

100-107


AN12 - 1" - 20 UNF

100-83


AN12 - Cap

100-92


AN12 - Bolt pattern

100-61


Bearing 15 x 28 x 7

Part 2


Under construction.

Part 2


Under construction.

100-93


AN16 - Bolt pattern

200-xxx-02


Draw bolt xxx=lenght mm

300-04


Relief valve adjuster bolt o-ring
8 x 1,9 mm

300-06


Relief valve jam nut - 3/8" - 24

300-30


Relief valve wineglass piston - 13 mm

300-31


Relief valve adjuster bolt allen hex
​​​​​​​3/8" - 24

300-32


Relief valve adjuster cylinder
​​​​​​​9/16" - 18 UNF

300-33


Relief valve o-ring adjuster cylinder and cap - 12, x 1,5

300-34


Relief valve adjuster cap
9/16" - 18 UNF

300-36


Relief valve piston rotated - 13 mm

300-44


Relief valve piston small/straight

300-57


Relief valve adjuster cap Steel RF

300-10


Relief valve spring - Yellow
1,2 x 8,25 x 55 mm

300-15


Relief valve spring - No Color
1,25 x 8 x 55 mm

300-11


Relief valve spring - Black
1,3 x 8,15 x 55 mm

300-12


Relief valve spring - Green
1,3 x 8,15 x 55 mm

300-13


Relief valve spring - Red
1,4 x 8,10 x 55 mm

300-14


Relief valve spring - Blue
1,4 x 8,10 x 55 mm

300-16


Relief valve spring set - 8pc

300-18


Relief valve spring - Sliver
1,4 x 8,10 x 55 mm

300-19


Relief valve spring - Gold
1,4 x 8 x 55 mm

300-20


Relief valve spring - White

300-35


Relief valve adjuster cylinder complete set

300-37


Relief valve rotated adjuster cylinder complete set
